SYN SHOP Badge

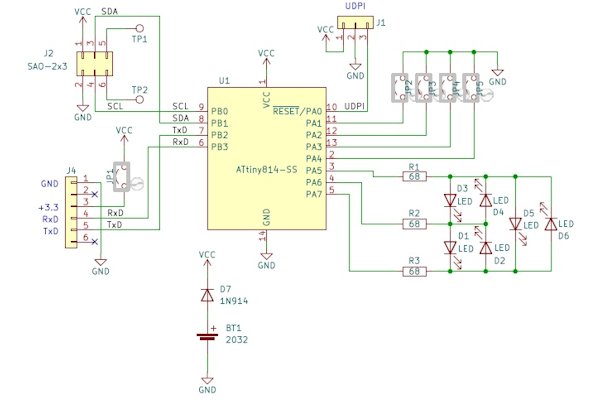

SYN SHOP Badge Schematic
Tn1View - SYN SHOP Badge Schematic Tn1View - SYN SHOP Badge PCB Front Tn1View - SYN SHOP Badge PCB Back
Name: SYN SHOP Badge
CPU: ATtiny814
Status: Hardware Completed. Software operational.
Summary: The SYN SHOP Badge was made for DefCon 34, 2026 as a soldering practice board.
It is a 'winky light' display badge with six LEDs that flash a pattern.
It can also be controlled through the SAO port I2C interface.
Specifications 10 MHz CPU, 3v 2032 coin cell battery, I2C interface.
Dimensions: 1.6" x 1.6"
Power: CPU: 3vdc.
Software Project folder
Schematics SYN SHOP Badge schematic
SYN SHOP Badge PCB Front
SYN SHOP Badge PCB Back

Description

The SYN SHOP Badge was designed as a soldering practice board for DefCon 34, 2026. The solder pads were enlarged to make hand soldering easier.
It used three I/O lines to control six LEDa in a 'winky light' display that flash a pattern.
It includes an SAO port I2C interface that can load patterns and control the timing of the display.
Four solder-jumpers pads bring out the unused I/O lines.
A UDPI port, compatible to the SNAP programmer and an optional six pin serial port are included.
