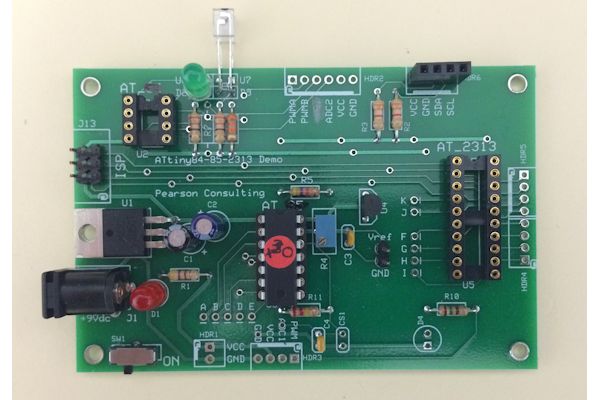

Multi Tiny AVR Demo Board
| Name: | Multi Tiny Demo Board |
| CPU: | ATtiny84, ATtiny85, & ATtiny2313 |
| Status: | Completed and Tested. |
| Summary: | This multi processor board provides an easy way to program the three processors
and to to do simple I2C slave experiments. |
| Specifications | |
| Dimensions: | 3.5" x 2.85" |
| Power: | 7 to 12 VDC |
| Schematics | ATtiny84_85_2313proto_1_1.pdf |
Description
The Multi Tiny AVR Demo bopard project was a simple board to eliminate using proto boards
for quick proof-of-concept projects using three of the more inexpensive Tiny AVR devices.
It allows easy programming and verification without the hassle of an ISP adapter or rebuilding
simple circuits on a proto borad for each new idea. Most of the target projects used I2C
as a control bus so a header supports that. There is an ISP header that connect to all three
processors..
