ATmega4809 Development Board
| Name: |
ATmega4809 Demo Board |
| CPU: |
ATmega4809 |
| Status: |
In Work. |
| Summary: |
A demo board to evaluate the AVR ATmega4809 family of devises.
ISP programming port provided. Break outs for SPI, I2C, Serial, and extra I/O.
|
| Specifications |
Internally clock CPU. |
| Dimensions: |
6.0" x 3.5" |
| Power: |
7 - 12 VDC |
| Software |
see NewAVR Project folder |
| Schematics |

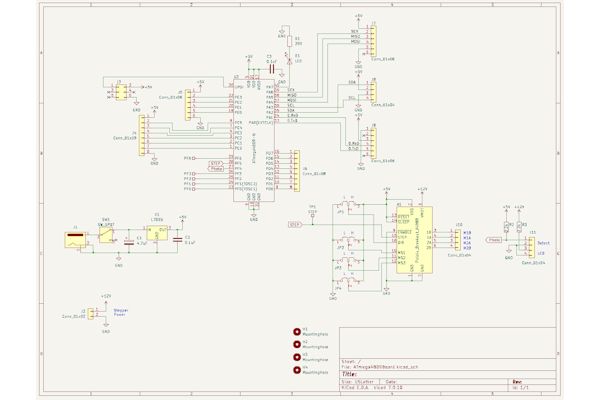

ATmega4809Demo schematic
|
Description
The ATmega4809 board is designed to evaluate the UPDI programming method for the AVR family of devices.
It provides a Status LED and break out pins for various interfaces.
Power is supplied through the 2.1 mm plug typical of hobby CPU boards.
Features
- ATmega4809 AVR MPU
- SPI, I2C, and Serial break out points
- Status LED
- AVR ISP programming header
