Face Animatronics Board
 |
 |
| Name: | Face Animatronics Board |
| CPU: | Two I2C ADC Serial Audio boards |
| Status: | In Work. |
| Summary: | The Face Animatronics board is used for developing Face action sequences while final hardware
is being built. |
| Specifications | |
| Dimensions: | 12.0" x 12.0" |
| Power: | 9 VDC plus 3.6v or 3.7v for servos |
| Software | Master and Slave C Code |
| Schematic | I2C ADC Serial Audio Board |
| System Diagram |
Description

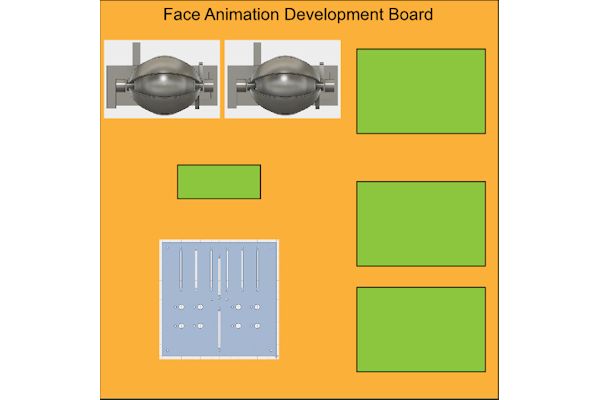

The Face Animatronics board is designed to allow development of facial animation sequences.
There is one variable resistor for each movable item in the face. The eyes use rotational pots to
control rotational servos and the other items use linear pots to control linear servos.
The CAPTURE button will record the current settings of all the pots and add this snap-shot to
the current list. The PLAY button will cycle through the current list of snap-shots.
A MENU button brings up a menu to set timing, transistion modes, and other sequence parameters.
- Two 8 channel 10 bit ADC boards
- 0.5w @ 8ohm audio driver
- Serial port to support FTDI and Bluetooth adapters
- Status LEDs
- 5vdc regulated power (500mw)
- I2C network
- Master and Slave API for I2C interface
- Serial API for Optional FTDI/Bluetooth interface
The board uses a 7-12v DC (9v DC typical) external supply for power. The servo power is 4.8v DC.
